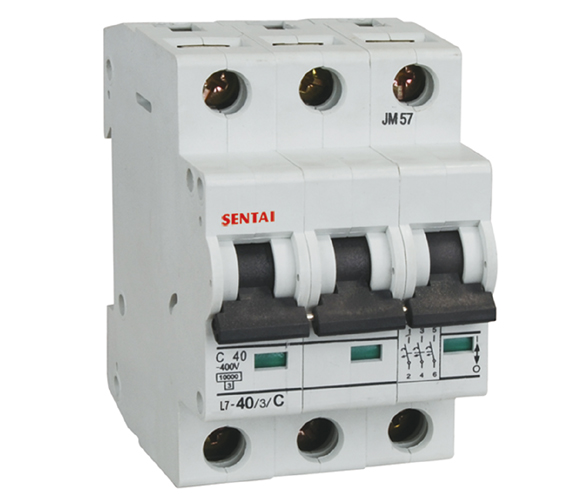

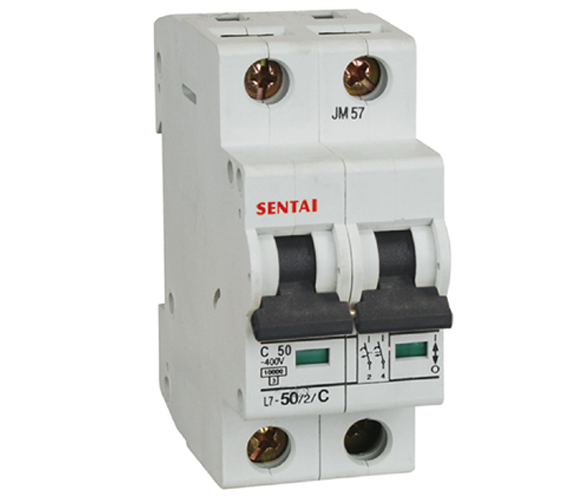

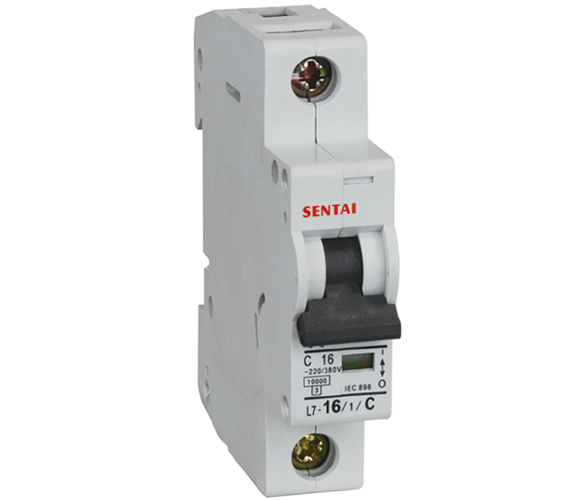

APPLICATION

The products of L7 belong to the advanced level of the nineties in the international instead of the older generation of L7. They have protective function as shortage as overload, and are used in lighting distribution system in industy, commerce and dwelling, and protecting fractional electric motors. And they also have many merits of high protective grade (up to IP20), high break capacity, reliable sensitive action, convenient, multipole assembing, long life etc. They are mainly adapted to the circuit of AC 50Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meawhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

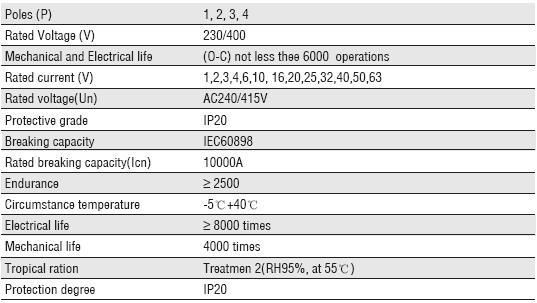

SPECFICATION
