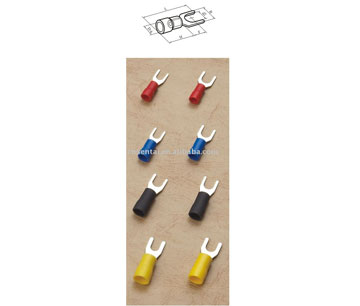

Pre insulating terminal - Detailed info for Pre insulating terminal,terminal,Pre insulating terminal
SVL
 |
Print this page |  |
Live Messenger |
|
Bookmark this |  |
Skype Me |
|
Add Cart |  |
E-mail Us |
 |
PDF Download |  |
Yahoo Message |
0.51.5mm2(22-16) Imax=19A
| ITEM.NO. | US SYSTEM OF BOLTS |
d2 | DIMENSION | COLOR | ||||
| B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
| SV1.25-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS1.25-3.5 |
#6 |
3.7mm | 5.7 | 21.2 | 6.5 | |||
| SVL1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| SVS1.25-4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| SVM1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| SVL1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| SVS1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| SVL1.25-5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| SVS1.25-6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| SVL1.25-6 | 1/4 | 6.5mm | 12.0 | 21.2 | 11.0 | |||
1.52.5mm2(16-14) Imax=27A
| ITEM.NO. | US SYSTEM OF BOLTS |
d2 | DIMENSION | COLOR | ||||
| B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
| SV2-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | blue |
| SVS2-3.5 |
#6 |
3.7mm | 5.7 | 21.2 | 6.5 | |||
| SVL2-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| SVS2-4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| SVM2-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| SVL2-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| SVS2-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| SVL2-5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| SVS2-6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| SVL2-6 | 1/4 | 6.5mm | 12.0 | 21.2 | 11.0 | |||
2.54mm2(14-12) Imax=37A
| ITEM.NO. | US SYSTEM OF BOLTS |
d2 | DIMENSION | COLOR | ||||
| B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
| SV3.5-4 | #8 | 4.3mm | 8.0 | 24.8 | 7.0 | 12.5 | 6.2 | black |
| SV3.5-5 |
#10 |
5.3mm | 8.0 | 24.8 | 7.0 | |||
| SV3.5-6 | 1/4 | 6.5mm | 12.0 | 28.0 | 12.1 | |||
46mm2(12-10) Imax=48A
| ITEM.NO. | US SYSTEM OF BOLTS |
d2 | DIMENSION | COLOR | ||||
| B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
| SV5.5-3.5 | #6 | 3.7mm | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | yellow |
| SVS5.5-4 |
#8 |
4.3mm | 8.3 | 25.2 | 7.5 | |||
| SVL5.5-4 | #8 | 4.3mm | 9.0 | 23.9 | 7.5 | |||
| SV5.5-5 | #10 | 5.3mm | 9.0 | 23.9 | 7.5 | |||
| SVS5.5-6 | 1/4 | 6.5mm | 9.0 | 23.9 | 7.5 | |||
| SVL5.5-6 | 1/4 | 6.5mm | 12.0 | 31.2 | 12.0 | |||
| SV5.5-8 | 5/16 | 8.4mm | 14.0 | 30.0 | 11.5 | |||
|
