-> Copper Terminals -> Connection Tubes -> Detailed info for GTL connection tube,connection tube,GTL connection tube,power transformers - zhejiang sentai electrical apparatus factory
 |
)
|
 |

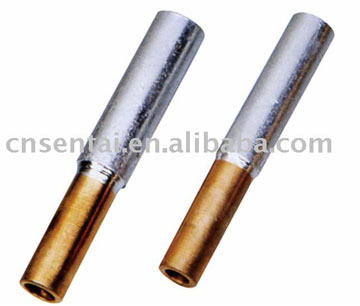

Detailed info for GTL connection tube,connection tube,GTL connection tube,power transformers - zhejiang sentai electrical apparatus factory
 |
Print this page |  |
Live Messenger |
|
Bookmark this |  |
Skype Me |
|
Add Cart |  |
E-mail Us |
 |
PDF Download |  |
Yahoo Message |
|
Type |
Dimensionsmm |
||
| L |
d |
d1 |
|
|
GTL-AL25/CU16 |
70 |
6.8 |
5.5 |
|
GTL-AL35/CU16 |
76 |
8 |
5.5 |
|
GTL-AL35/CU25 |
82 |
8 |
7 |
|
GTL-AL50/CU25 |
85 |
9.8 |
7 |
|
GTL-AL50/CU35 |
90 |
9.8 |
8.2 |
|
GTL-AL70/CU35 |
95 |
11.2 |
8.2 |
|
GTL-AL70/CU50 |
100 |
11.2 |
10 |
|
GTL-AL95/CU50 |
105 |
13.2 |
10 |
|
GTL-AL95/CU70 |
110 |
13.2 |
11.5 |
|
GTL-AL120/CU70 |
116 |
14.7 |
11.5 |
Type | Dimensionsmm | ||
| L | d | d1 | |
GTL-AL120/CU95 | 118 | 14.7 | 13.5 |
GTL-AL150/CU95 | 120 | 16.3 | 13.5 |
GTL-AL150/CU120 | 122 | 16.3 | 15.5 |
GTL-AL185/CU120 | 128 | 18.3 | 15.5 |
GTL-AL185/CU150 | 130 | 18.3 | 17 |
GTL-AL240/CU150 | 132 | 21 | 17 |
GTL-AL240/CU185 | 135 | 21 | 19 |
GTL-AL240/CU240 | 140 | 21 | 21.5 |
GTL-AL300/CU240 | 145 | 23.3 | 21.5 |
GTL-AL300/CU300 | 150 | 23.3 | 24.5 |
|
