Application

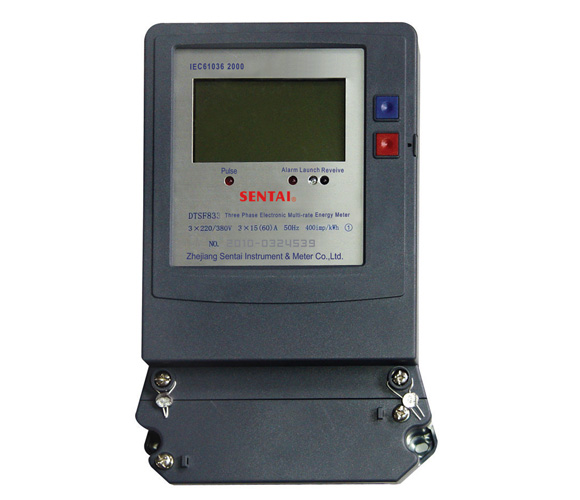

DTSF833/DSSF833 three-phase multi-rteelectric meter is a kind of three phase three tariffs (time-sharing billing)
active energy watt-hour meter, the meter completely accord with relevant technical requirements of class 1
three phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly
measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for
setting indoor or out door meter box. This meter has seven digits LCD monitors shows various consumption
data and information. And there are far infrared and RS485 communication module in it. It is use for setting and
reading the meter. Contact with all kind of AMR system conveniently. It has following features: Good reliability,
light weight, specious nice appearance, convenient installation, etc.

Functions and features

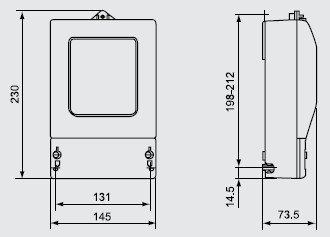

Front board three fixed holes installation, up and down mounting holes center distance is 198-212 mm, users
can choose any one by themselves.
Have three tariffs, may select 12 daily period of times. You can set the date arbitrary which can automatic read
the meter every month. May select single tariff function in weekend. (Please specified when ordering)
There ise a clock and Maintenance-free backup lithium batteries in it. Battery capacity detection and display all
the time. It can keep the electricity data for 12 months. The data can be kept forever after power cut off.
May select cycle display (default) or push the button itemized display, we can set the cycle display, it can
display 14 data at most. Can select the data which displayed. The decimal median which displayed can choose
set one or two.
There is a polarity port of pulse output passive closed and a no polarity port of pulse output passive distant,
the output rate is 10 or 100 imp/kWh (can select),Complying with standard IEC 62053-31 and DIN 43864.
There are far infrared and a port of RS485 communication data. It is use for setting and reading the meter. Set
and operation have password protection, communication protloc complying with standard DL/T645-1997.
Ten LED instructions respectively power state, signal of power impulse, the direction of the trend of load
current, the state rates just now and the data communications state.
Single direction three components measure three phase four wire active power consumption. It is nothing
with direction of the trend of load current. Complying with standard IEC 62053-21.
Standard configuration for direct connect and use, type 1 connection, we can also choose another type of
connection, and use CT and PT & CT , type connection for operation.
Standard configuration short terminals cover, may select extended terminals cover, in order to protect to use
electricity safely.

Technical parameters
