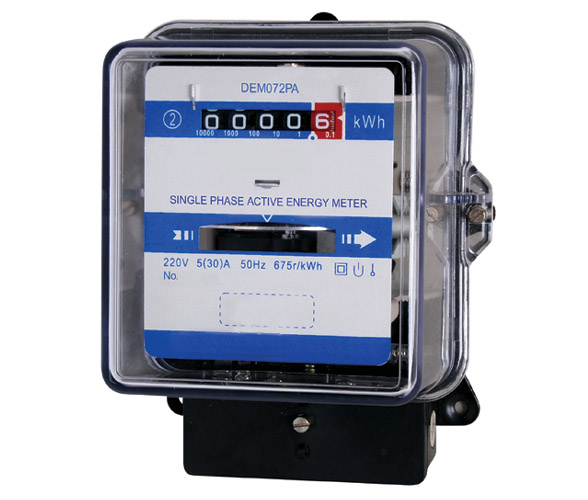

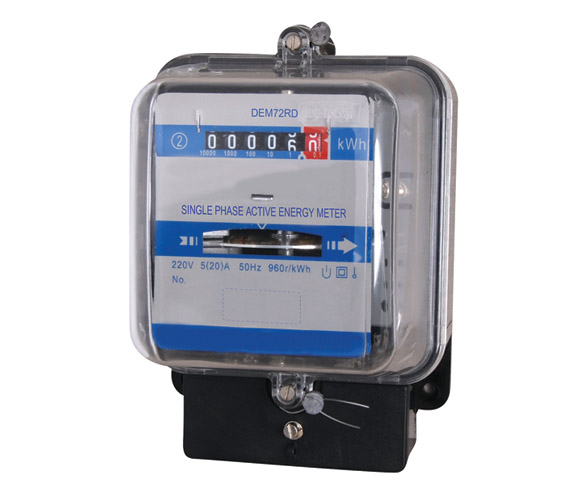

DEM072 series long life energy meter manufacturers from china
DEM072![]() |
Print this page | ![]() |
Live Messenger |
![]() |
Bookmark this | ![]() |
Skype Me |
![]() |
Add Cart | ![]() |
E-mail Us |
![]() |
PDF Download | ![]() |
Yahoo Message |
Application
Model DEM072PB single phase electromechanical front board installed active energy meter is a kind of new style single phase two wire active energy meter, it is on the basis of original single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad, The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.
Structure and feature
Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: good weatherability, high rigid, specious appearance, etc.
The meter frame adopt top-quality steel plate once molding with excellent mechanical strength, stable structure and anti-impact.
Voltage components and current components are used of double insulation structure, has good electrical characteristics.
The meter adopt magnetic thrust bottom bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following

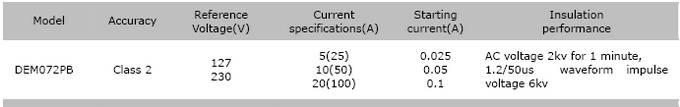

Technical parameters

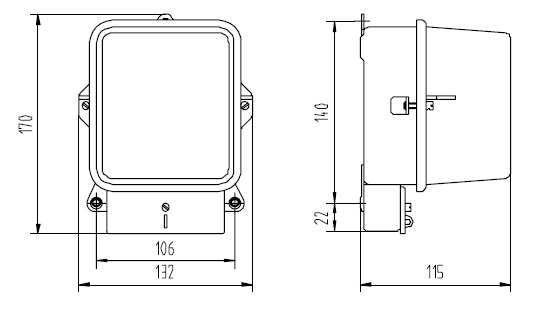

Outer and mount dimension

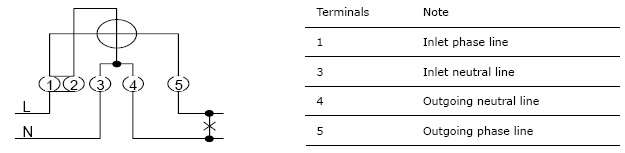

Wiring diagram
