APPLICATION

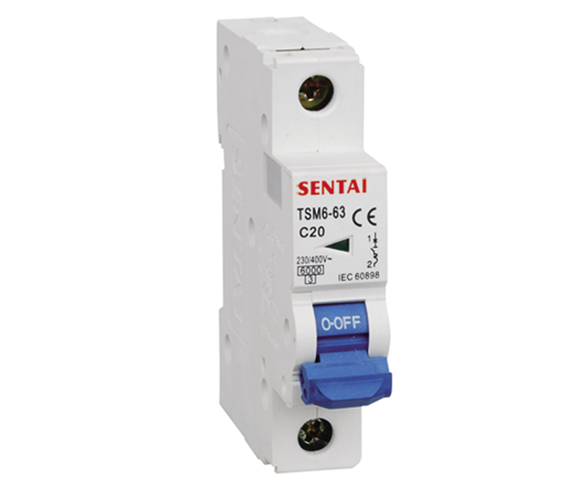

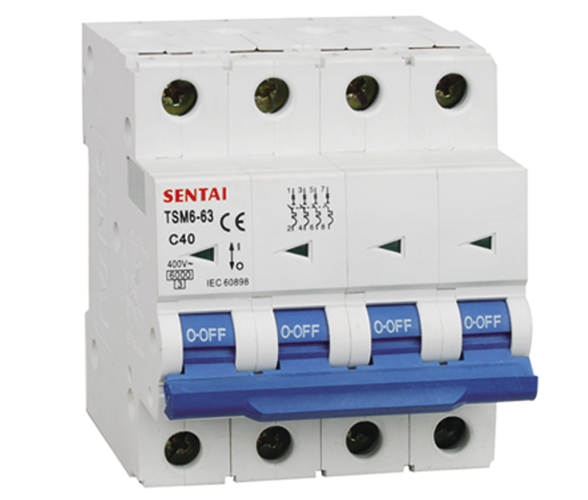

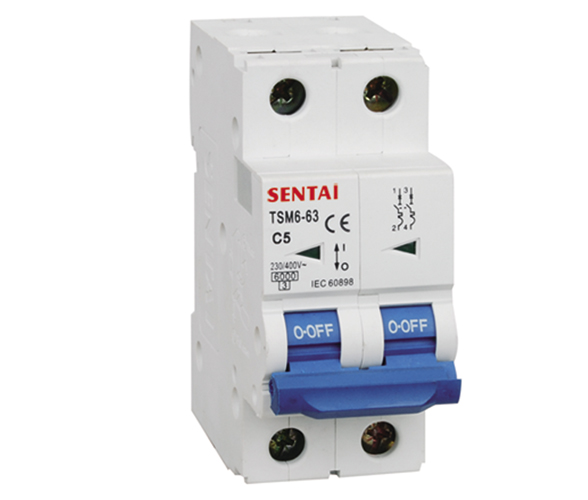

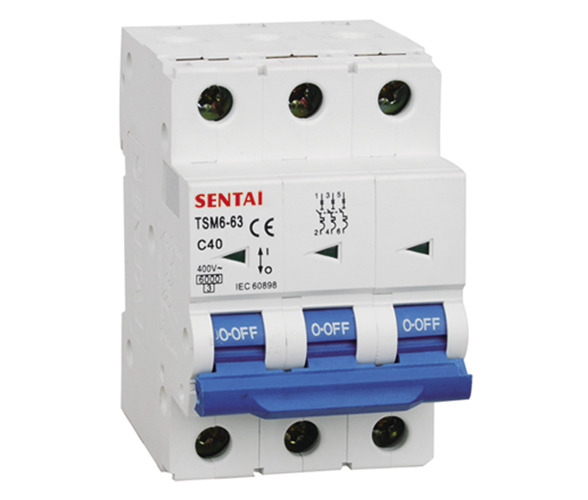

TSM6-63 series Mini Circuit Breaker is the new product adopted the newest modern high technology. lts excellent performance is depending on the quick trip and strong ability of exterminating the electric arc, and it enhances the safeness in the case of limited short-circuit. The brilliant characteristic of it's short-circuit current is superior to the related requirement of IEC60989. The electrical endurance of the products is well improved, which reduce the destruction to the siatribution system or equipments. The products is mainly used in the circuit which is AC 50/60Hz, voltage ≤400V and rated current ≤63A.It is the best choice of the building distribution system.

WORKING ENVIRONMENT

Working Temperature:-30℃~70℃
Heat Proof:Type2(As temperature is 55℃, reiative humidity is 95%)
Protective Grade:IP20
Environment Protection
The insulative material used conform to the EU Standard
The metal material used conform to the EU Standard
