TH-K series thermal relay manufacturers from china
TH-K
 |
Print this page |  |
Live Messenger |
|
Bookmark this |  |
Skype Me |
|
Add Cart |  |
E-mail Us |
 |
PDF Download |  |
Yahoo Message |
APPLICATION
The thermal overload relays are suitable for overload protection of AC motor operated on 8-hours duty or uninterrupted duty.
The overload protected AC motor with frequency 50Hz, voltage up to 660V, current up to 40A.
Several functions provided by these relays are phase-failure protection, temperature compensation, ON/OFF indication and manual/automatic reset. The relays comply with IEC 292-1 standard.

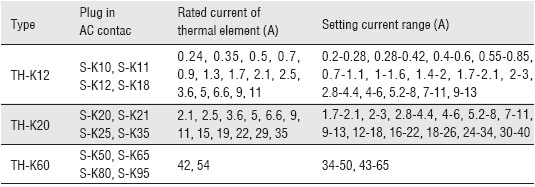

SPECIFICATION
DIMENSION
|
