T series thermal relay manufacturers from china
T
 |
Print this page |  |
Live Messenger |
|
Bookmark this |  |
Skype Me |
|
Add Cart |  |
E-mail Us |
 |
PDF Download |  |
Yahoo Message |
APPLICATION
The relay is suitable for using in the power circuits up to rated voltage 660V, rated current 500A 50Hz or 60Hz for overload and loss of phase protection or three phase induction motor and often combined with B series AC contactor into magnetic starter.

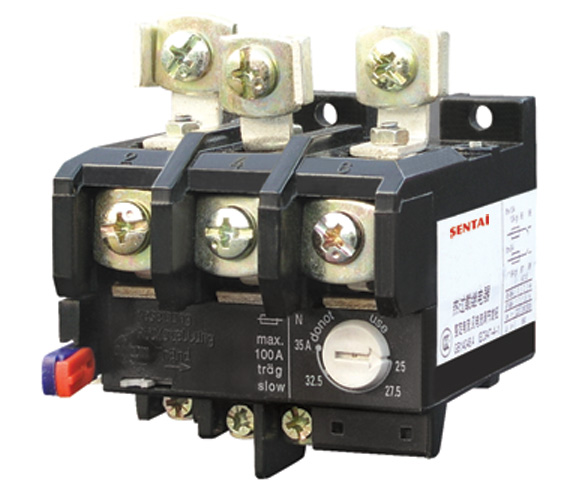

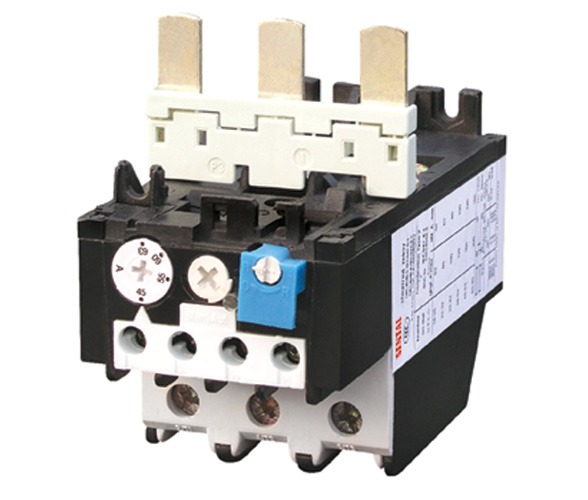

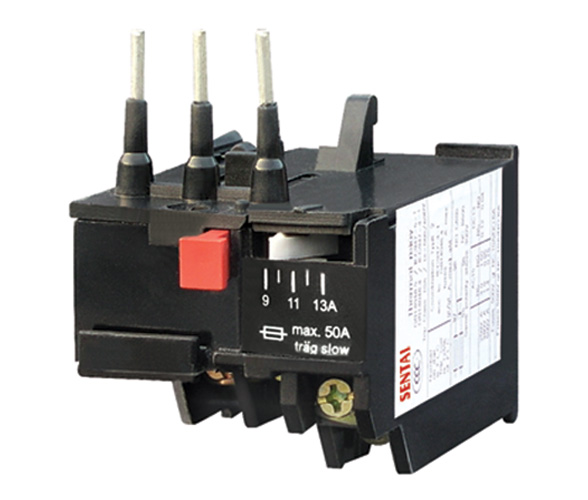

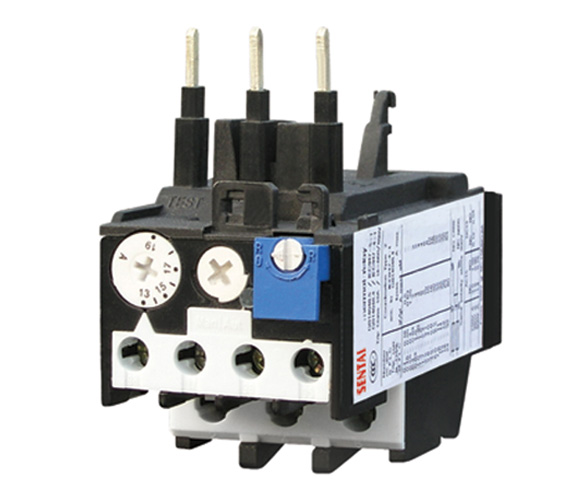

T16 & T25 thermal relays have a friction trip operating mechanism with loss of phase running protection, pullback spring type operating mechanism (jump mechanism) with loss of phase protection for T85 & TSA45, back pack jump mechanism for T170 & T105, main circuit with instrument transformer jump mechanism with loss of phase for T250 & T370.

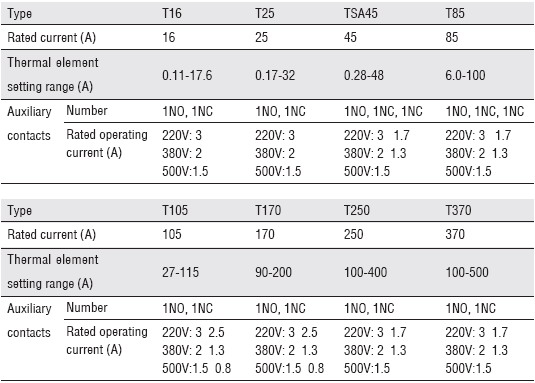

SPECIFICATION

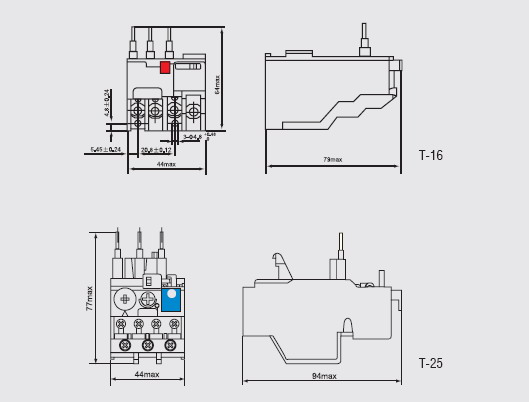

DIMENSION
|
